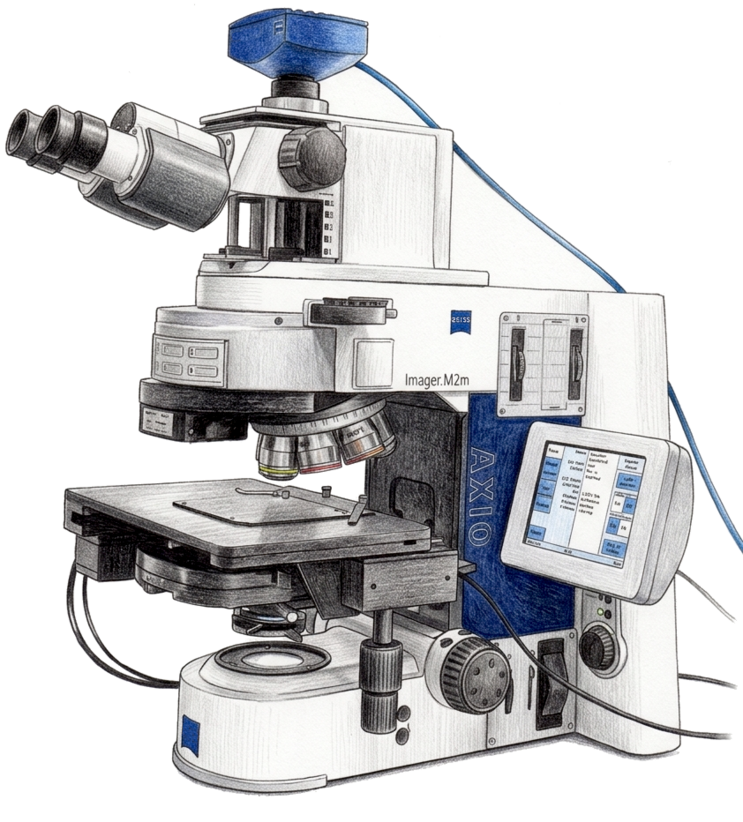

Optical Microscopy
Contact Person
Währinger Straße 38-42
1090
Wien
Room: 3309A
Email
+43-1-4277-73805
Terms of use and usage fees
This device can be used autonomously after successful training.
To be authorised to use this device, you must pass the following tests:
- General Safety Guidelines for Faculty Members
- Laboratory Safety
| User group | Hourly Rate | Note |
|---|---|---|
| Faculties of Physics and Chemistry | - | |
| Vienna Life Science Instruments | 2.5 € | 1. |
| University users | 5 € | 1. |
| Non-university users | 10 € |
- Under a publication agreement, the hourly rate is waived.
We also charge for the costs of our staff for training sessions and measurements that cannot be carried out independently.
| User group | Hourly Rate for the Operator | Note |
|---|---|---|
| Faculties of Physics and Chemistry | - | |
| Vienna Life Science Instruments | 70 € | 1. |
| University users | 70 € | 1. |
| Non-university users | 100 € |
- Under a publication agreement, the hourly rate for our employees is also waived.
Specifications
| Device Parameter | Value or Range |
|---|---|
| Operating modes | Incident or transmitted light Bright field or dark field |
| Lenses | EC Epiplan-Neofluar 2,5x/0,06 HD EC Epiplan-Neofluar 5x/0,13 HD EC Epiplan-Neofluar 10x/0,25 HD EC Epiplan-Neofluar 20x/0,50 HD EC Epiplan-Neofluar 50x/0,8 HD EC Epiplan-Neofluar 100x/0,9 HD LD EC Epiplan-Neofluar 100x/0,75 DIC (4,0 mm WD) |
| Working Distance | 0.6 mm@50x to 15 cm@2,5x |
| Ocular | Ocular PL 10×/23 |
| Illumination | 2 x microLED 2, Colourtemperature 5700 K |
| Camera | Zeiss AxioCam 305 Color 2464 x 2056 (3.45µm) 8/12Bit Spectral Range 400 nm - 720 nm |
| Table | Area 75x50 mm, Resolution 0.5 µm |
| Software | Zeiss ZEN core |
